Nanpu Motor is the manufacturer and brand of H7 BLDC Motor(Brushless DC Motor) in China. This motor has a power range of 1500W~2000W and a rotor height of 60mm~80mm, making it suitable for vehicles with relatively high power requirements. This motor has received unanimous praise in the markets of Asia, Europe, and America. If you need this engine, then I think we can become a good partner because we are the creators of this engine.

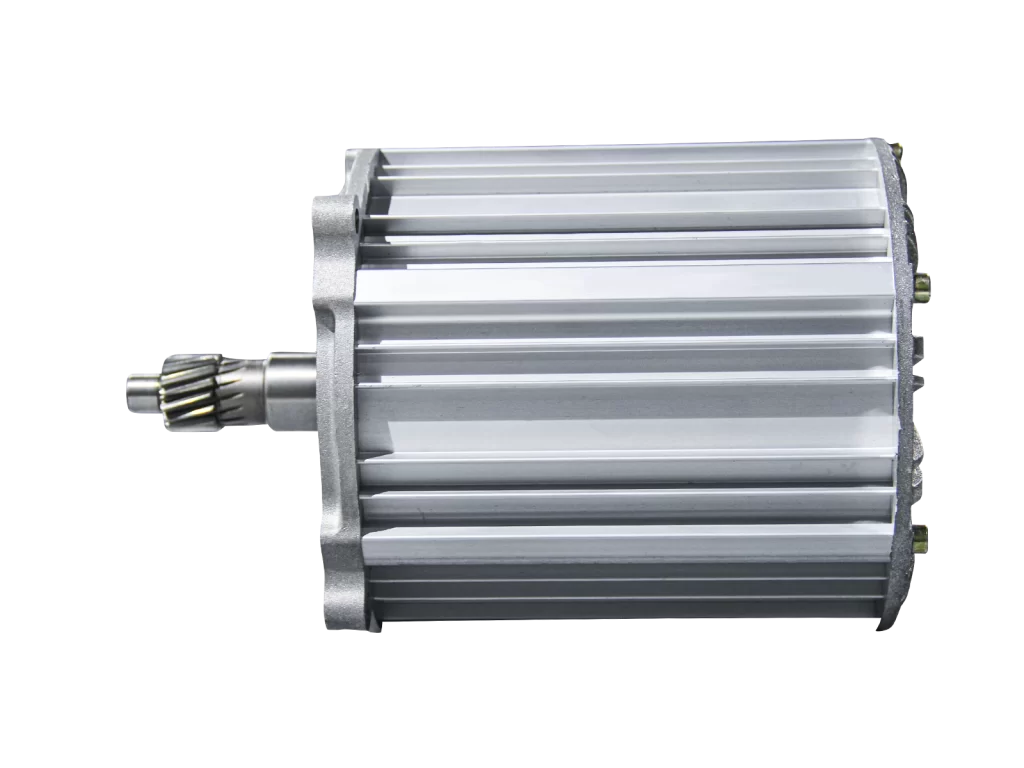

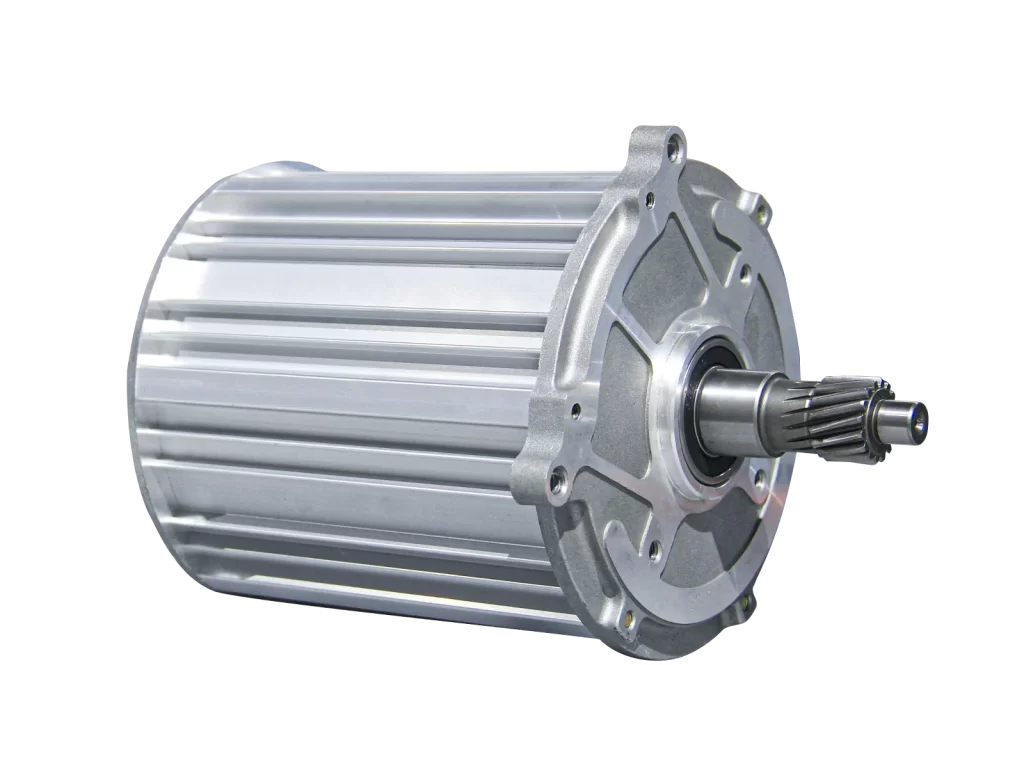

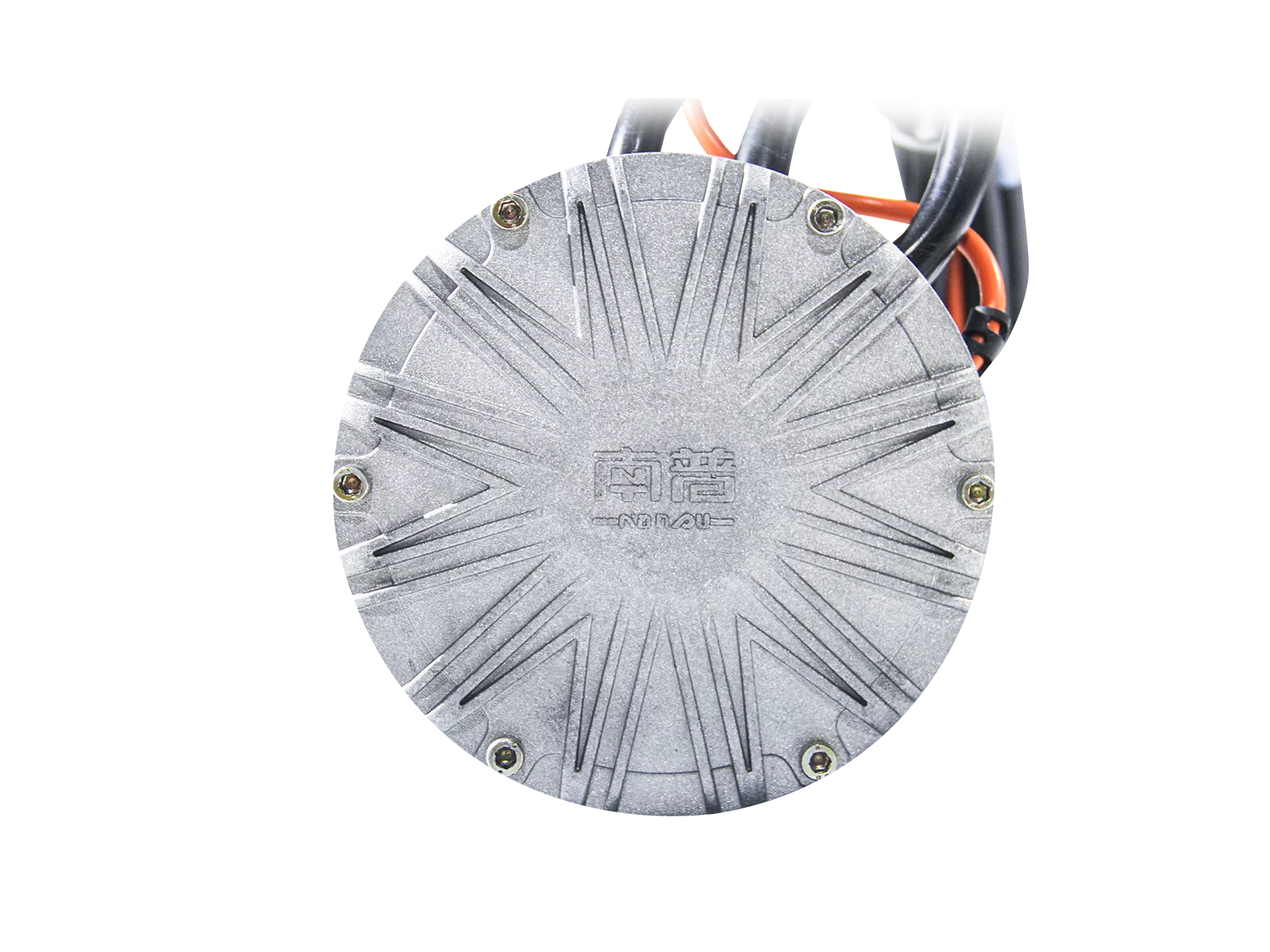

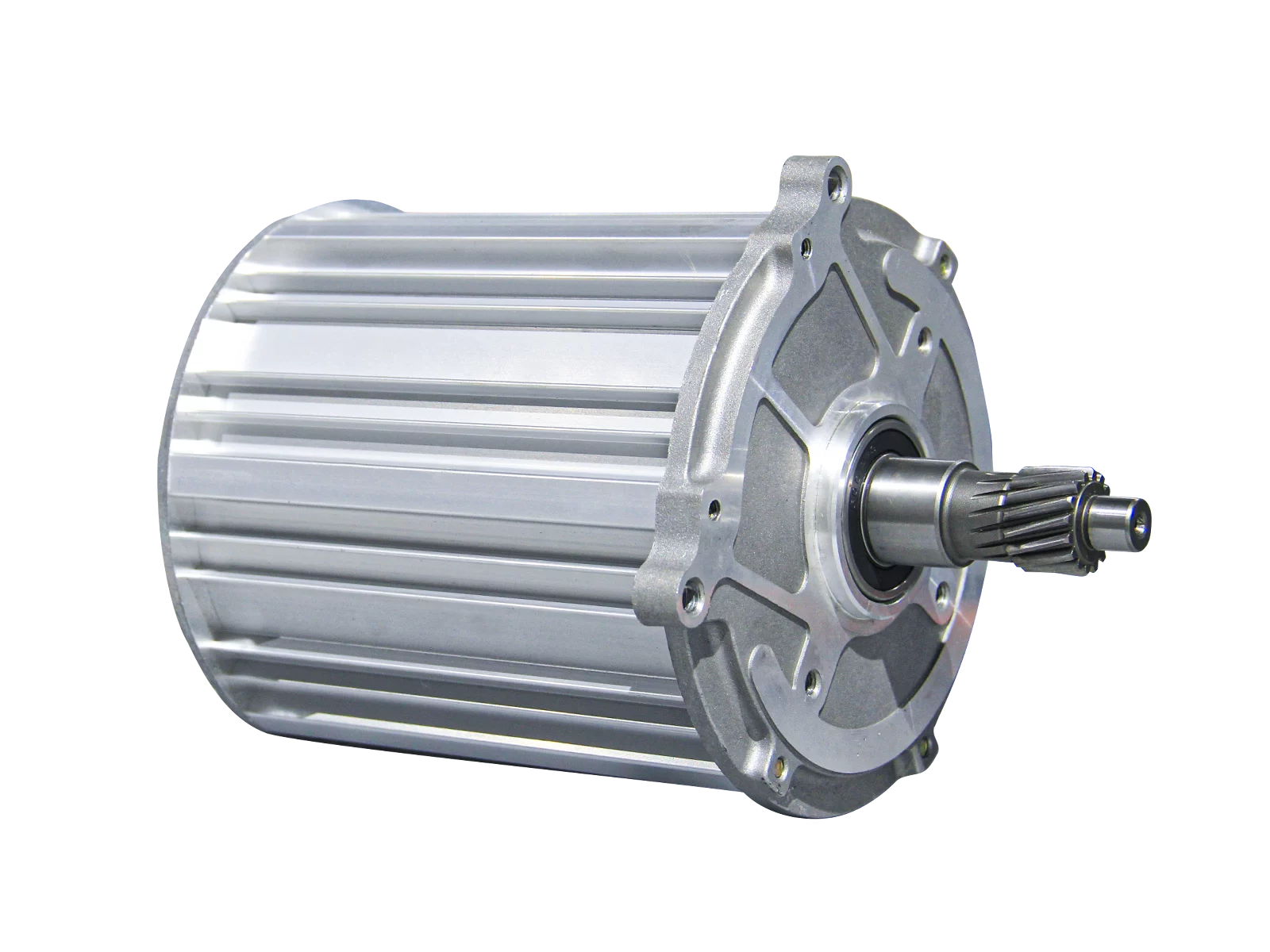

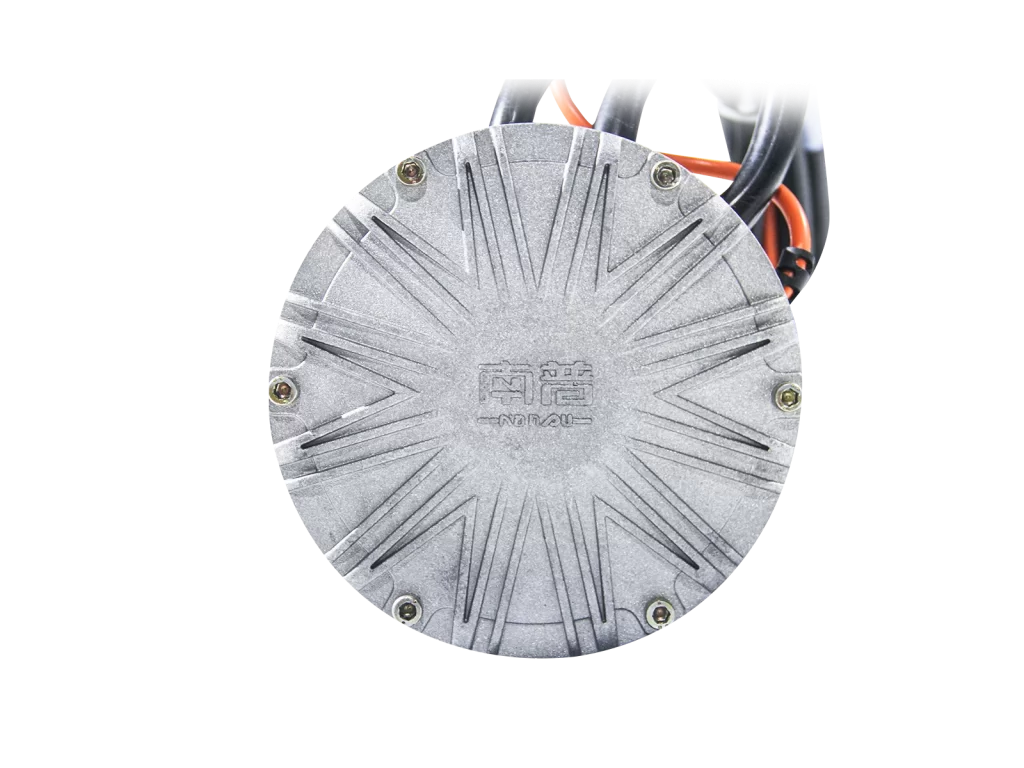

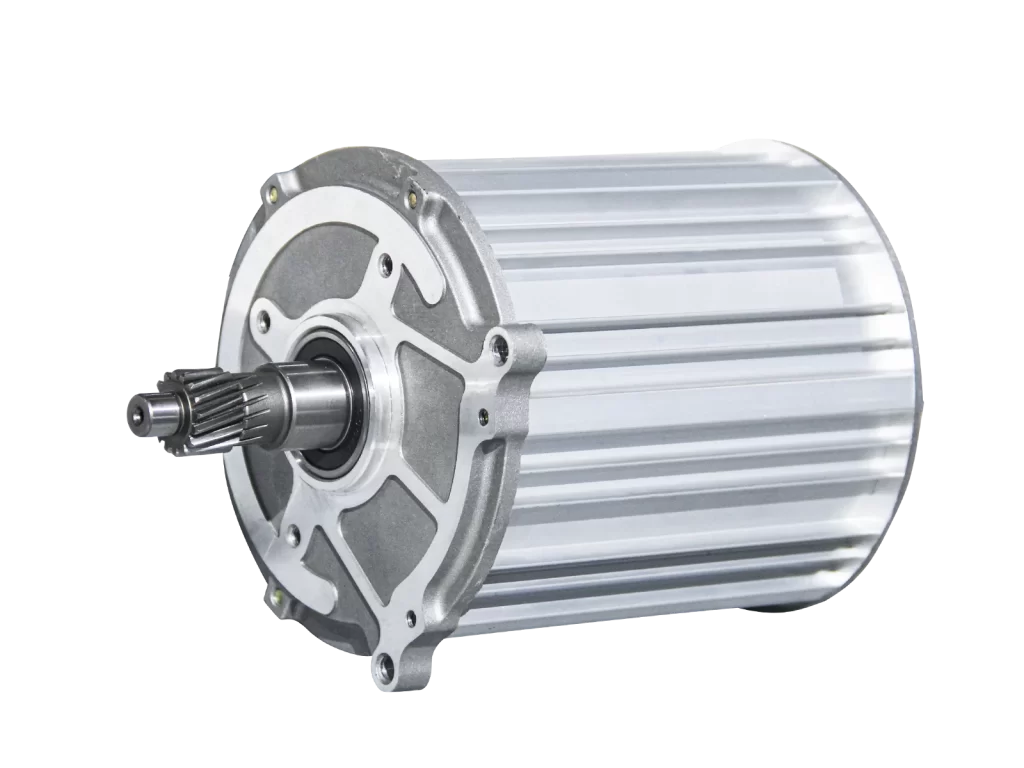

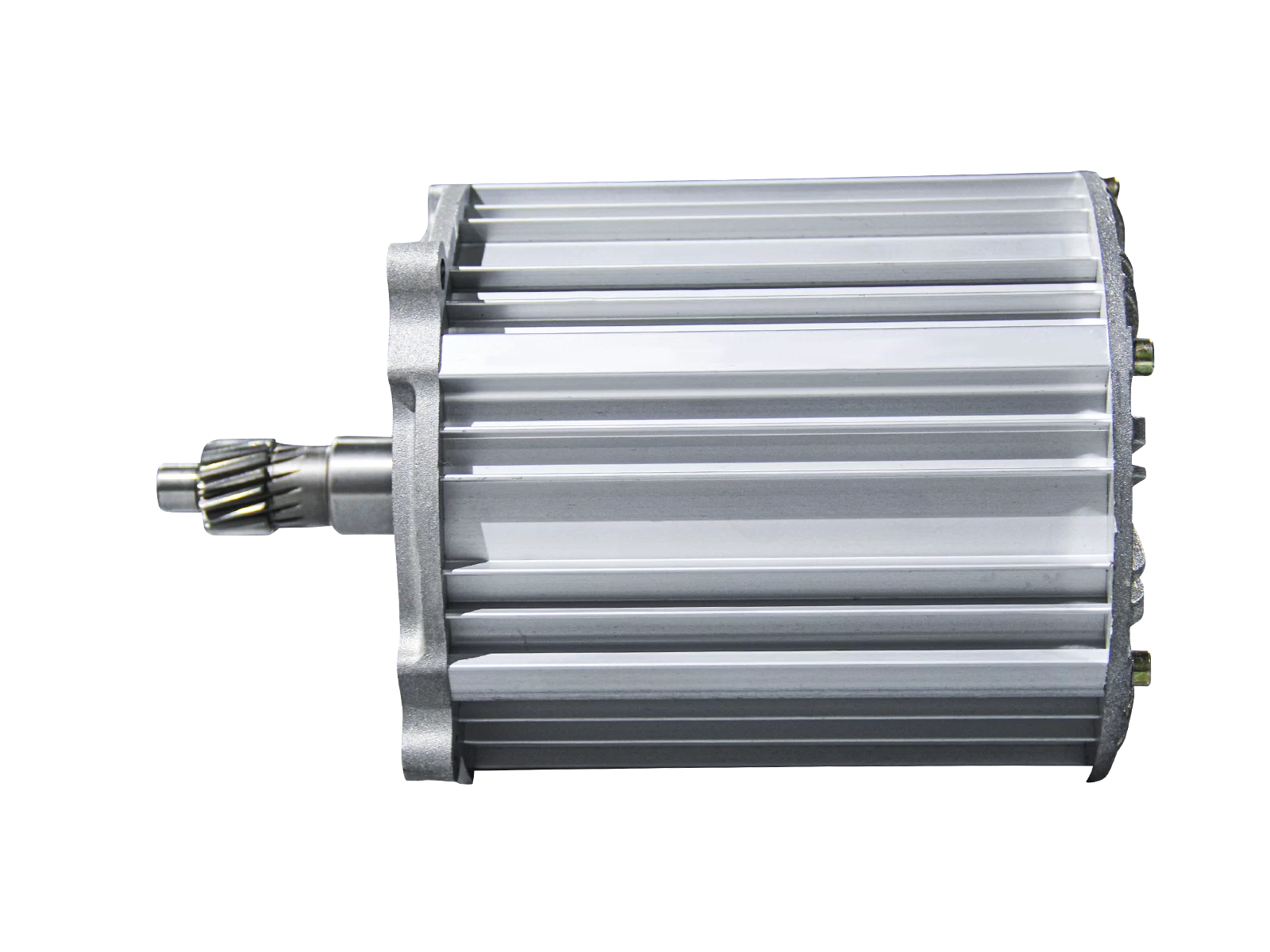

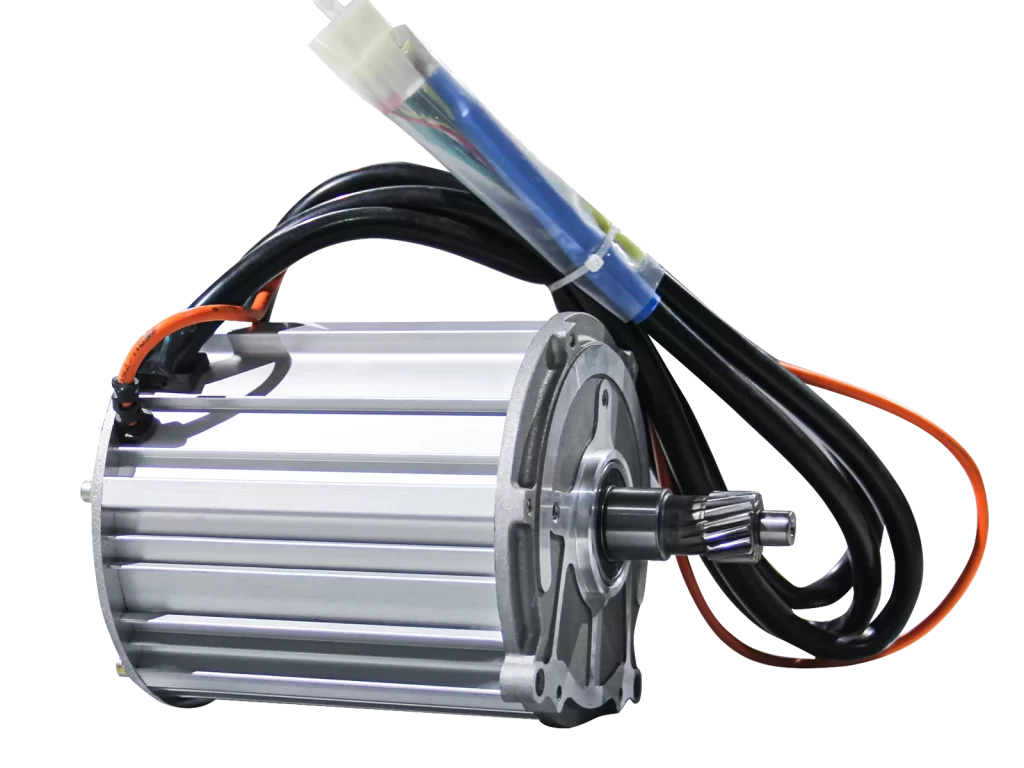

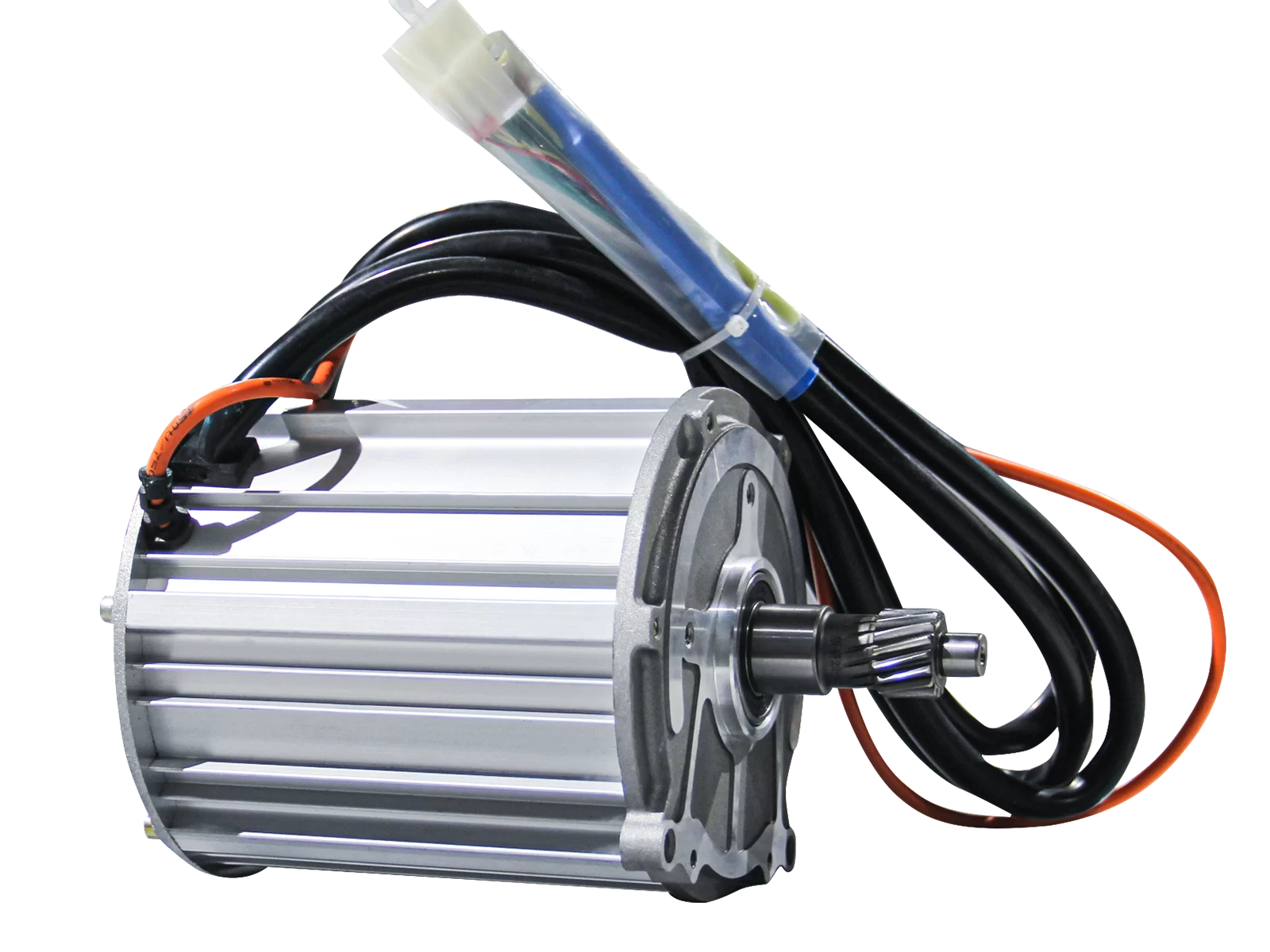

Nanpu H7 BLDC Motor is a high torque motor suitable for electric tricycles, rickshaws, Tuk Tuks, ATV and other electric vehicles. It uses high-strength bearings and thickened aluminum barrels to improve motor heat dissipation and ensure stable operation. The rated power is 1500W~2000W, and the motor shaft can choose between 16 external teeth or 14 internal teeth.
| Rated Voltage | 48V~72V | Rated Power | 1500W~2000W |
| Peak Torque | 42N.m~49N.m | Rated Speed | 2500rpm~5000rpm |
| Rotor Height | 60mm~80mm | Permanent Magnet Grade | 38H |
| Motor Color | Silver | Motor shaft | 16 Teeth,14 Teeth |
| Thermal Classification | F | Position Sensor | Hall |
| Ingress Protection | S9 | Control Method | Square Wave |
| Pole Pairs | 4 |
| Save Temperature Range | -40℃～85℃ |
| Working Temperature Range | Motor -40℃～55℃ |
| Working Humidity Range | 0～95% |
1.High Efficiency
The motor utilizes advanced electronic controllers to precisely regulate current and torque, achieving efficient energy conversion across a wide speed range. This not only reduces operational costs but also aligns with modern eco-friendly standards.
2.Wide Speed Range
The Nanpu H7 BLDC Motor is capable of operating within a broad speed spectrum while maintaining high efficiency and performance. This versatility caters to diverse operational requirements across various applications.
3.High Reliability
Its brushless design eliminates the issues associated with brush friction and wear in traditional motors, significantly enhancing the motor’s reliability and lifespan. Additionally, excellent heat dissipation capabilities further ensure long-term stable operation.
4.Low Noise
The absence of brush friction and wear contributes to the motor’s low noise levels, making it ideal for noise-sensitive environments such as homes and hospitals.
5.Environmental Friendliness
The Nanpu H7 BLDC motor incorporates eco-conscious design and manufacturing practices, avoiding the use of rare metals or other environmentally harmful materials. Its high-efficiency energy conversion also minimizes waste and reduces environmental impact.
6.Compact Structure and Lightweight
The brushless design and optimized internal structure enable the motor to be compact and lightweight, facilitating easier installation and greater flexibility in use.
7.Ease of Control
Advanced control algorithms and sensor technology enable precise regulation of motor speed, torque, and other parameters. This feature makes the Nanpu H7 BLDC Motor highly suitable for automation control systems.
Note: The above drawings are for 1800W BLDC Motor and are for reference only. The length of the motor varies depending on the power.The length of the wire can be customized, and the numbering and power rating can be customized…
| Product Picture | Product Name | Specification |
|---|---|---|
| | H7 BLDC Motor |
